Dome Metal Splice Closure for Opgw Cable
Overview Dome Metal splice closure for Opgw Cable Main Features: The dome metal splice closure for OPGW cable bears the
Send your inquiryDESCRIPTION
OverviewBasic Info.
Model NO. | JBJ |
Transport Package | Export Standard Packing |
Specification | CE, RoHS, SGS, ISO |
Trademark | Powtech |
Origin | China |
HS Code | 85447000 |
Production Capacity | 5000PCS/Month |
Product Description

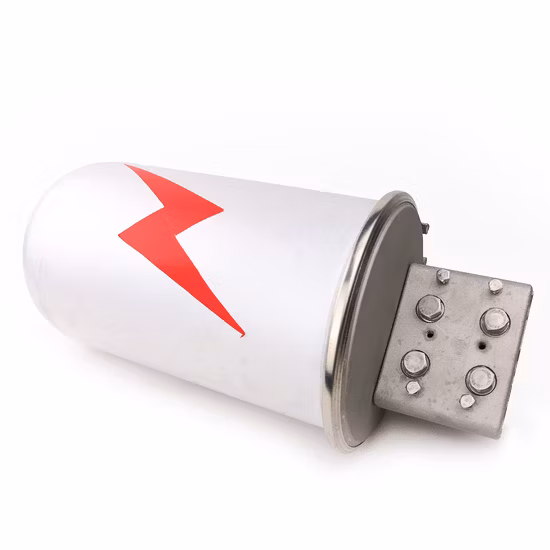

Dome Metal splice closure for Opgw CableMain Features:
The dome metal splice closure for OPGW cable bears the excellence of high mechanical strength, good airproof performance and excellent corrosion resistance. Having been sealed with sealing ring and silicone, it could be opened, expanded, fixed, and connected repeatedly. The maximal capacity is 192core. Technical data:Excess loss ≤0.01DbBend radius diameter ≥45mm Product Specifications
Dimension(mm) | 480(H)×200(φ) |
Weight(Kg) | About 6 |
Cable Entry Ports | 2 and 2 |
Max Capacity Of Fiber Splice Tray | 48 |
Max Capacity Of Splice Tray | 4 |
Max Capacity | 192core |
Sealing Structure | Silicon Gum Material |
Protection Class | IP66 |
S.No | Item | Quantity | Remarks |
1 | Aluminum alloy housing | 1 | |
2 | Aluminum alloy base | 1 | |
3 | Splice Tray | 1~4pcs | Depends on core capacity |
4 | 0.55m fiber tube | 2~4pcs | Only for OPGW cable |
5 | ADSS pass part or OPGW pass part | 2~4pcs | According to customer's request |
6 | Heat shrink tube | 12~192pcs | |
7 | Sand paper | 1pcs | |
8 | Cable ties | 4~12pcs | |
9 | Electrical tape | 1roll | |
10 | Silicon gum sealant | 1pcs | |
11 | Aluminum pieces | 1set | |
12 | Tower installation accessory or pole installation accessory | 1pcs | According to customer's request |
Company ProfilePOWTECH is a high-tech enterprise who specialzes in manfuacturing electric transmission, distribution and telecom line materials like: ABC clamp, piercing insulation connector, insulators, surge arresters, dropout fuse, isolation switch, preformed guy grips, stainless steel banding, FTTH fittings, PLC splitter, patch cord, cross arm, stay wire and all transmission line fittings. Since our establishment in 1994, we dedicated ourselves to serve our partner with one-stop service, professional service, quality product, factory acceptance test, installation training, onsite guide and many value-added services.
After more than 20years' development, we are certified by ISO9001, ISO14001, SGS, FCC, CE, RoHS and by customer-appointed lab test suthorities etc.
With the belief, there's no small or big customer, every customer deserve good srevice. We are willing to support all of our customers grow and prosper.
